WE4 Series High-Performance low voltage Asynchronous Motor

Short Description:

WE4 series super ultra-high efficiency three-phase asynchronous motor is a new and upgraded product of ultra-high efficiency independently developed by our company.The efficiency is in line with the energy efficiency standard of class 1 in GB 18613-2012 and meets the efficiency index of IEC60034-30-1. The mounting dimensions of this product are in line with IEC standards and national standards, enabling customers to realize quick conversion.WE4 series motors are characterized by beautiful appearance, low loss, low noise, low vibration, safety and reliability, and easy maintenance.


Product Detail

Product Tags

WE4 series super ultra-high efficiency three-phase asynchronous motor is a new and upgraded product of ultra-high efficiency independently developed by our company.The efficiency is in line with the energy efficiency standard of class 1 in GB 18613-2012 and meets the efficiency index of IEC60034-30-1. The mounting dimensions of this product are in line with IEC standards and national standards, enabling customers to realize quick conversion.WE4 series motors are characterized by beautiful appearance, low loss, low noise, low vibration, safety and reliability, and easy maintenance.

Application

Suitable for petroleum, chemical, mining, metallurgy, electric power and other industries in non-explosive environments. It is the ideal power equipment.

Basic Features

Stand number; H80-H355

Power: 0.18~375kW

Pole: 2,4,6,8

Voltage: 220 / 380V, 380 / 660V, 230 / 400V, 400 / 690V, etc.

frequency: 50Hz

Working mode: S1

Case: cast iron, fixed foot

junction box: cast aluminum alloy, located on the top of the motor, but also located on the right or left side of the motor.

Installation method: B3, B5, B35, V1, etc.

Insulation level: Grade F, according to grade B temperature rise assessment

Protection level: IP55

Cooling method: IC411

Wiring: 3kW and below 380V “Y” connection. Over 3kW motor 380V “△” connection

Bearing lubrication: H180 and below use maintenance-free bearing, H200 and above use open bearing and is equipped with oil injection and discharge device.

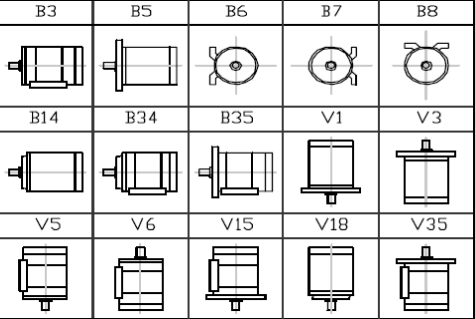

Mounting

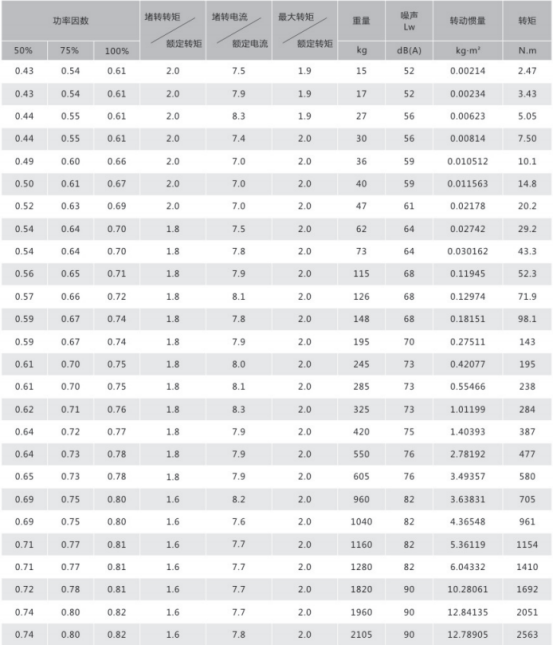

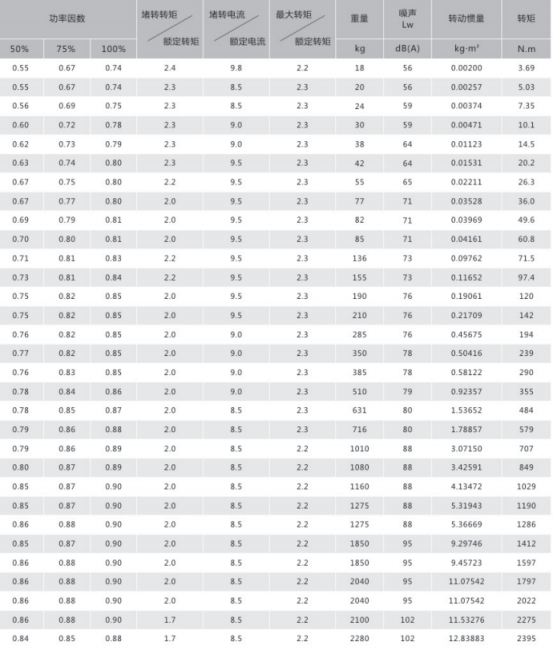

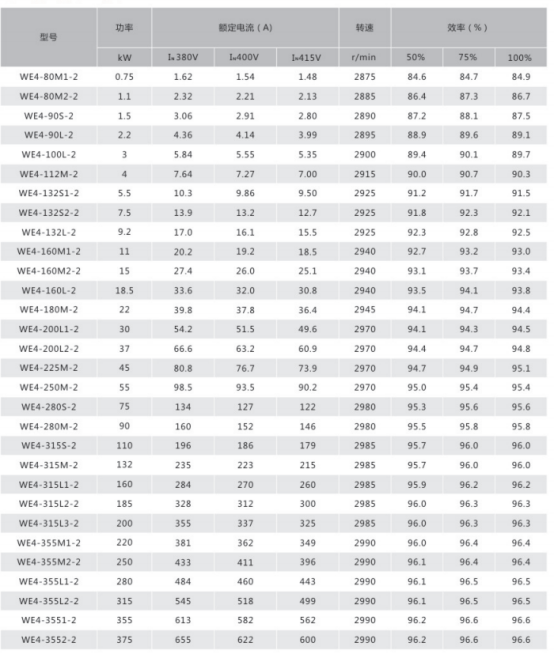

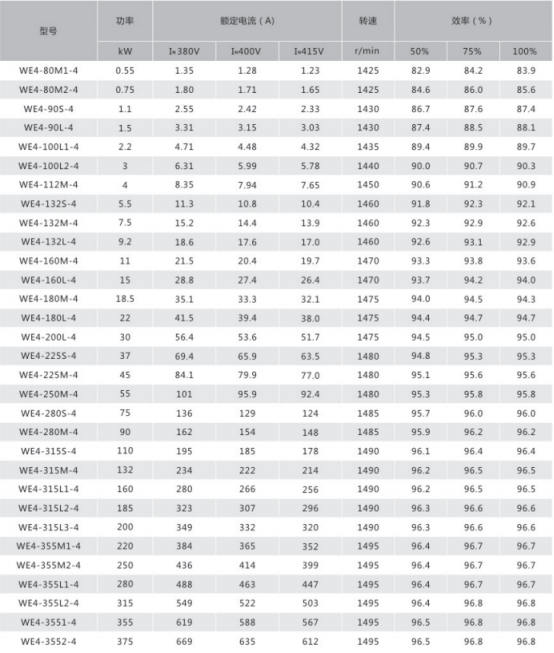

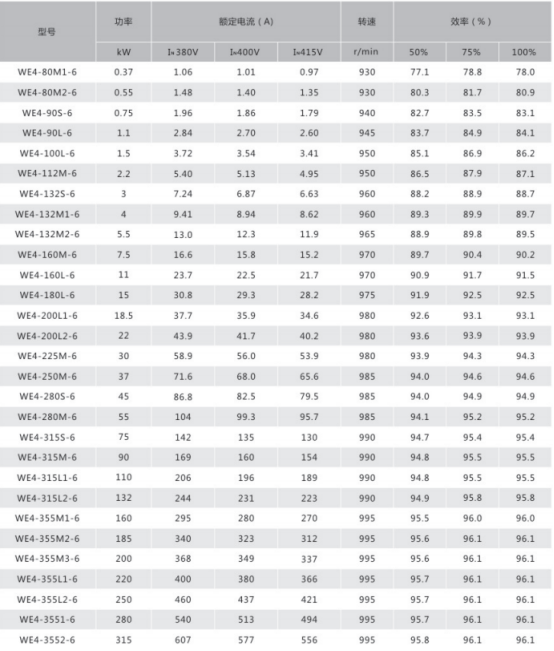

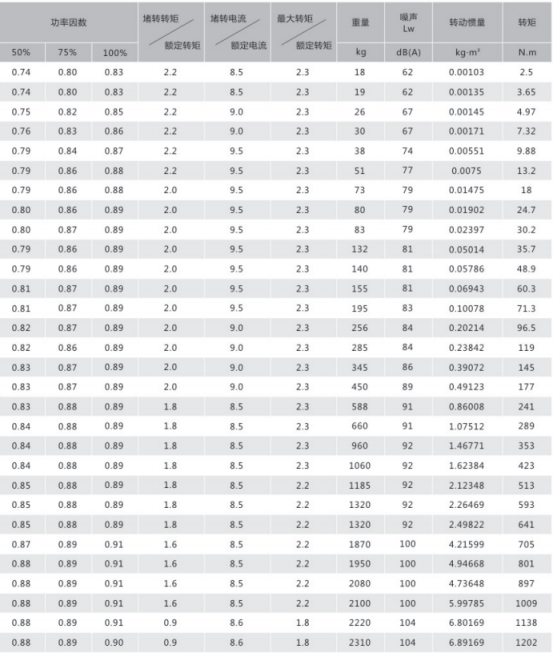

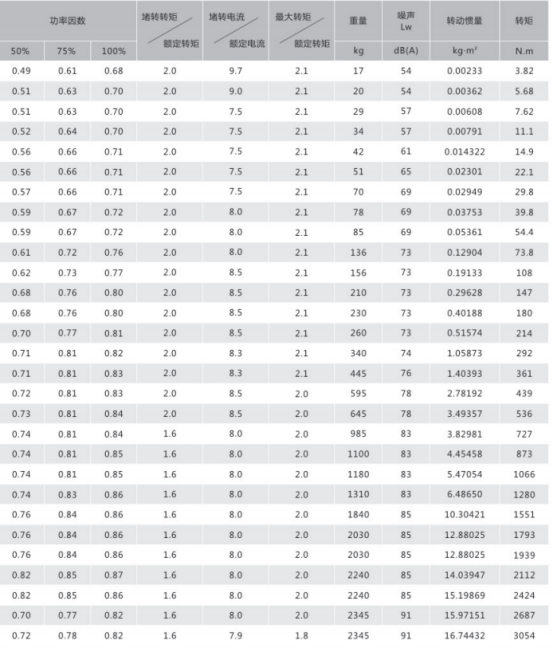

Parameter
