Critical Explosion‑Proof Motor Selection: Class I Div 2 Group B Certification Difference in North American Standard

A client from USA recently inquired about replacing existing TECO explosion proof motors used in chemical & energy projects. The original NEMA motor adopted strict North American hazardous area standards:

• Class I, Div 2, Groups B, C & D
• Class I, Zone 2, Groups IIB+H₂, IIB & IIA

The client initially received a quotation for our NEXP series NEMA premium motors, which were designed for heavy duty industrial applications. However, during technical review, a critical compliance gap was identified regarding explosion proof group certification.

Key Technical Difference Explained

1. North American Class I Hazardous Location Definition Class I covers environments with flammable gases and vapors. Groups are classified by gas ignition risk, where:

• Group B: The most stringent rating, specifically for hydrogen (H₂) and high risk flammable gases
• Group C & D: For conventional industrial flammable gases such as ethylene and propane

Div 1 refers to locations where hazardous gas exists continuously or frequently; Div 2 refers to areas where hazardous gas may occur occasionally under abnormal conditions.

1. Our Two Motor Series Compliance Status

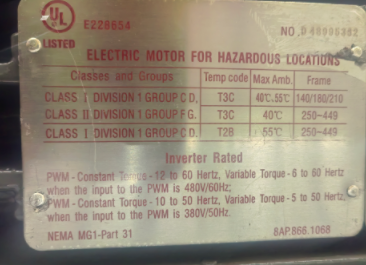

• NEXP Series: Designed and certified for Class I Div 1 environments (higher hazardous level than Div 2). However, this model does NOT hold Group B certification, meaning it cannot be used for hydroge containing working conditions, even though it meets Div 1 requirements.
• NSHE Series: Certified for Class I Div 2, Groups B, C & D, fully matching the explosion proof standard of the original TECO motor, including compatibility with hydrogen gas Group B applications.

Two Practical Solutions for the Client

Based on the certification gap, we proposed two professional solutions for the pump manufacturer:

1. Full compliance Solution: Adopt NSHE series Class I Div 2 motors with complete Group B/C/D certification. We revised the quotation and prepared full technical documentation including dimensional drawings, data sheets and certification reports to fully align with the original motor’s standard.
2. Condition verification Solution: Confirm whether hydrogen (Group B gas) exists on site. If no hydrogen is involved, NEXP series motors can be applied directly; if hydrogen is present, only NSHE series motors are acceptable for project approval.

Industry Takeaway

This case emphasizes that hazardous area motor selection cannot be judged only by Div level (Div 1 vs Div 2). Group certification (especially Group B for hydrogen) is a mandatory compliance factor for chemical, petrochemical and energy projects following North American standards.Exporters and pump system integrators must strictly cross check explosion proof group requirements against on site media, to avoid project rejection, rework and delivery delays caused by certification mismatch.
