Terminal boxes are core safety components of explosion-proof electric motors, determining whether motor wiring sections can reliably avoid igniting flammable gas and dust in hazardous industrial environments. The two mainstream designs shown in engineering drawings are increased safety (Ex eb, EAR type) and flameproof (Ex db, CAR type) terminal boxes, built around distinct explosion protection principles for different application scenarios.
The increased safety terminal box marked Ex eb adopts the increased-safety protection concept. Its structural design eliminates potential ignition risks such as loose wiring arcs and excessive component heating through optimized sealing, reinforced insulation and standardized assembly tolerances. It does not contain internal explosion containment cavities. This compact, square enclosure suits low-risk hazardous zones where explosive gas rarely accumulates, widely used for routine wiring of high-efficiency explosion-proof electric motors under stable operating conditions.

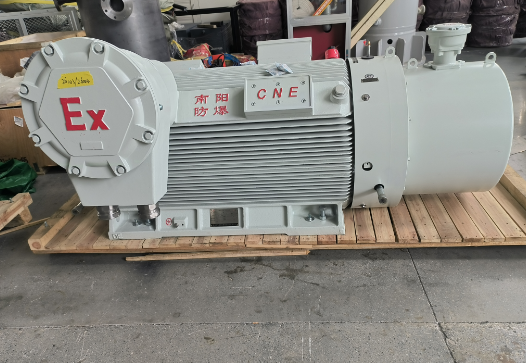

For Ex db flameproof terminal boxes, the circular enclosure is engineered as a robust flame containment chamber. If an internal electrical fault triggers an explosion inside the box, the thick, precision-machined enclosure walls and assembly joints will absorb explosion pressure, cool escaping flame, and stop ignition spreading to external hazardous atmosphere. This heavy-duty structure fits Zone 1 hazardous areas with frequent flammable gas presence, delivering higher fault tolerance for industrial motor systems.
When selecting terminal boxes for your explosion-proof electric motor projects, confirm site hazardous zone classification first: choose Ex eb increased safety models for low-risk, well-ventilated locations to cut installation cost; pick Ex db flameproof terminal boxes for high-risk sites to meet strict explosion protection compliance. Matching the correct terminal box type balances motor operational safety and total project expenditure.
