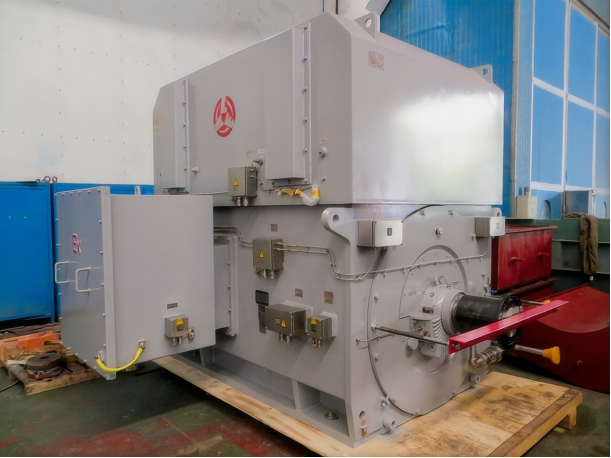

WOLONG Nanyang ATB brand YZYKK series high voltage positive pressure shell type three-phase asynchronous motor

Short Description:

The Schorch brand YZYKK series high-voltage positive pressure shell type three-phase asynchronous motor is a new generation of explosion Proof electric motor products developed by WOLONG Nanyang Explosion Protection company on the basis of introducing and absorbing foreign advanced technology, combined with WOLONG Nanyang Explosion Protection company’s long-term stable production of high-voltage three-phase asynchronous motor design and manufacturing experience. Its positive pressure explosion-proof technology is the first in WOLONG Ac Motor China.

Send email to us Download

Product Detail

Product Tags

The motor can be manufactured into two explosion-proof types: positive pressure housing type Expx and Expz. The Expx explosion-proof type can be used in Zone 1 and Zone 2, and the Expz explosion-proof type can be used in Zone 2. The two explosion-proof types are used in factories in explosive gas environments formed by gas, steam or mist-like explosive gas with ignition temperatures of groups T1, T2, T3, and T4 and air. The positive pressure housing type Expx can also be used on Class I equipment. This series of motors are made of carefully selected materials and are well made. They have the characteristics of small size, light weight, high power, high efficiency, low noise, low vibration, safe and reliable operation, easy use and maintenance, energy saving and environmental protection, etc.

Application

This WOLONG series of motors has the characteristics of lower center height, greater power, lower noise, safe and reliable operation, and convenient use and maintenance. It is suitable for driving various ventilators, compressors, water pumps, crushers, cutting machinery, transportation machinery, general machinery and other mechanical equipment, and is used as the original power in various working conditions such as mining, steel, machinery, petroleum, chemical industry, power station, etc. Whether indoors or outdoors, in plateau climate or hot and humid climate, this series of high-voltage three phase ac motors can always provide outstanding driving force and has won the trust and praise of WOLONG users.

Basic Features

Frame size: 315～630

Rated voltage: 6000～10000V

Rated frequency: 50Hz, 60Hz

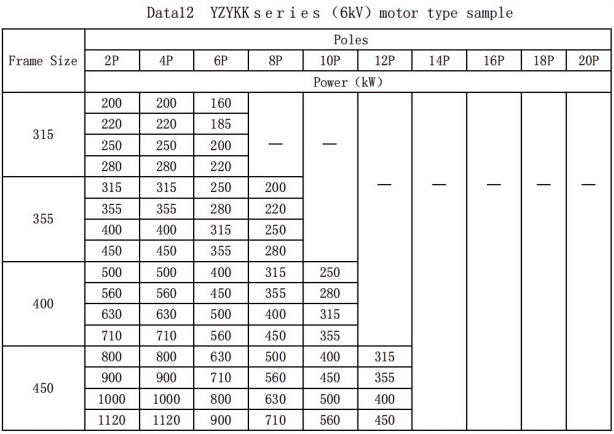

Rated power: see spectrum table 12-15

Number of poles: 2～20P

Thermal classification: 155(F)

Temperature rise limit: 80K(B class), 105K(F class)

Efficiency: 3-level energy efficiency. In accordance with GB30254-2013 "Energy efficiency limit values and energy efficiency grades for high-voltage three-phase cage asynchronous motors", energy efficiency level 3.

Cooling method: see Table 2

Installation method: IMB3

Protection level: see Table 2

Power factor: S1

Ambient air temperature: -20°C～+40°C

Altitude: ≤1000mm

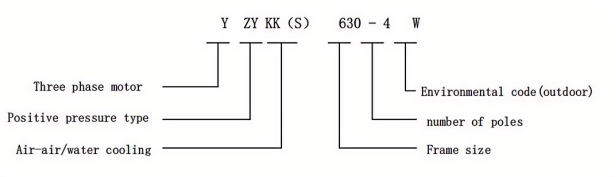

Model Description

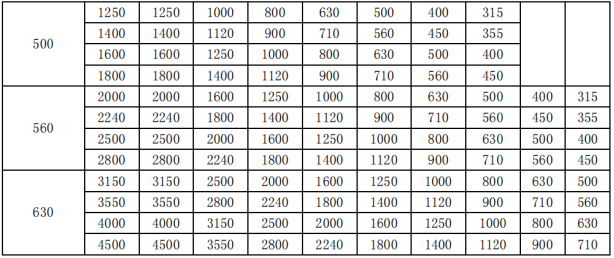

Parameter
