WOLONG Nanyang ATB brand YZYKS series high voltage positive pressure shell type three-phase asynchronous motor

Short Description:

The Schorch brand YZYKS series high-voltage positive pressure shell type three-phase asynchronous motor (frame number 315 ~ 630) (hereinafter referred to as the squirrel cage and slip ring induction motor) is a new generation of explosion-Proof AC Motors developed by WOLONG Nanyang Explosion Protection company on the basis of introducing and absorbing foreign advanced technology, combined with WOLONG Nanyang Explosion Protection company’s long-term stable production of high-voltage three-phase asynchronous motor design and manufacturing experience. Its positive pressure explosion-proof technology is the first in China Motor Factory.


Product Detail

Product Tags

This series of motor are made of carefully selected materials and are well made by WOLONG nanyang . They have the characteristics of small size, light weight, high power, high efficiency, low noise, low vibration, safe and reliable operation, easy use and maintenance, energy saving and environmental protection, etc.

Application

This series of WOLONG motors has the characteristics of lower center height, greater power, lower noise, safe and reliable operation, and convenient use and maintenance. It is suitable for driving various ventilators, compressors, water pumps, crushers, cutting machinery, transportation machinery, general machinery and other mechanical equipment, and is used as the original power in various working conditions such as mining, steel, machinery, petroleum, chemical industry, power station, etc. Whether indoors or outdoors, in plateau climate or hot and humid climate, this series of high power standard asynchronous motors can always provide outstanding driving force and has won the trust and praise of WOLONG users.

Basic Features

Frame size: 315630

Rated voltage: 600010000V

Rated frequency: 50Hz, 60Hz

Rated power: see spectrum table 12-15

Number of poles: 220P

Thermal classification: 155(F)

Temperature rise limit: 80K(B class), 105K(F class)

Efficiency: 3-level energy efficiency. In accordance with GB30254-2013 "Energy efficiency limit values and energy efficiency grades for high-voltage three-phase cage asynchronous motors", energy efficiency level 3.

Cooling method: see Table 2

Installation method: IMB3

Protection level: see Table 2

Power factor: S1

Ambient air temperature: -20°C+40°C

Altitude: ≤1000mm

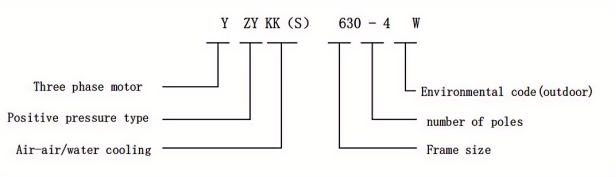

Model Description
